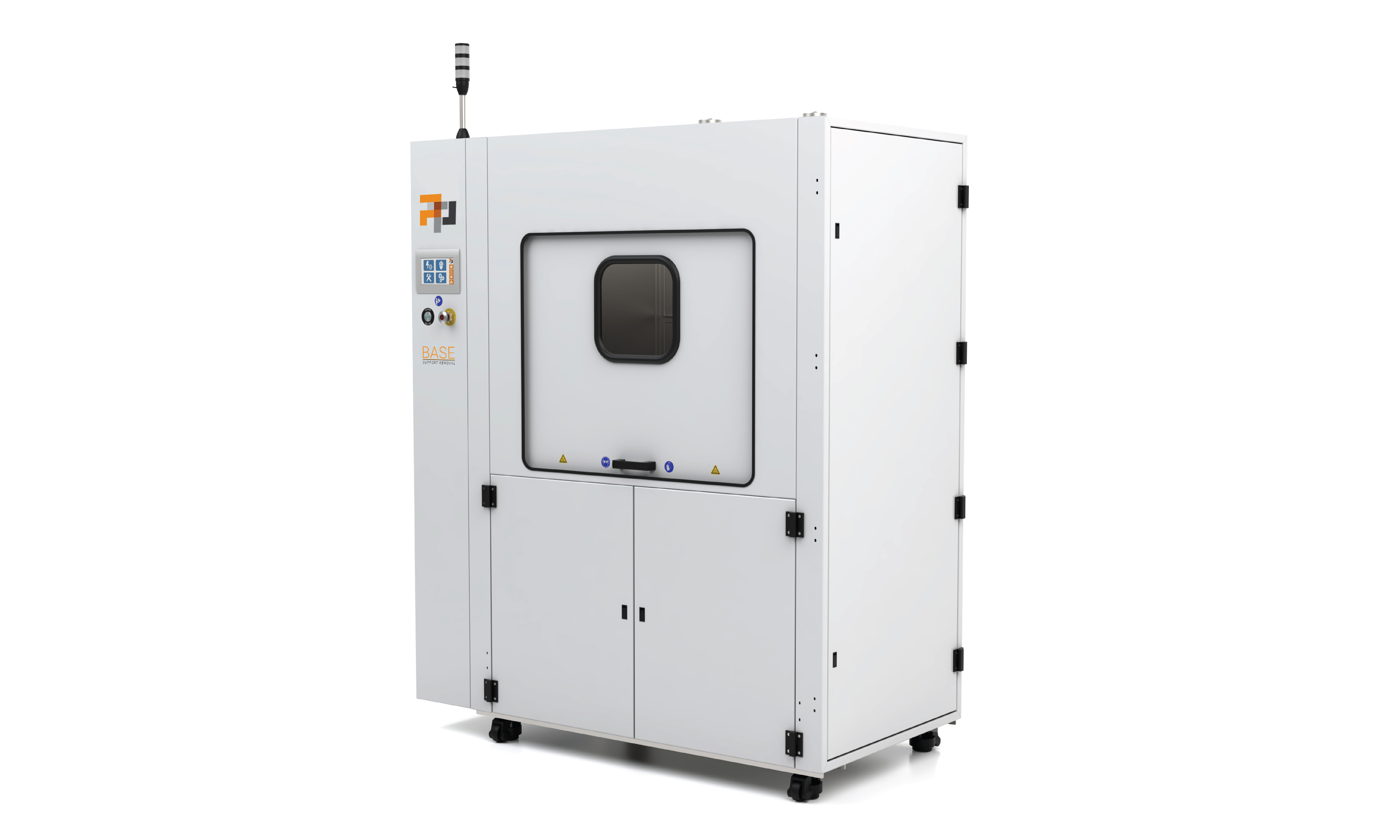

BASE Support Removal

The patent-pending BASE offers the largest envelope in our Support Removal series of machines and delivers uniform, high-quality results for every part, regardless of geometry, with short cycle times to meet high-volume production needs. The BASE removes supports from the following 3D printing technologies: FDM, SLA, PolyJet, CLIP, and more. The BASE provides delicate to robust support removal with higher throughput using Volumetric Velocity Dispersion (VVD) technology to ensure complete part coverage. The system is ruggedly designed for the largest additive manufactured parts, with an envelope measuring 40″ L x 27.5″ W x 26″ H.

PostProcess’ proprietary Volume Velocity Dispersion (VVD) technology, a series of high volume and flow jet streams spraying bidirectionally coupled with perpendicular linear motion for mechanically assisted support removal, ensures fast cycle times with virtually no damaged parts. Because of the high-volume (200 GPM), low-pressure system (35 PSI), parts feel a powerful yet gentle, all-encompassing flow of detergent that also keeps the part in place. Once applied, the constant force felt by the part reduces the risk of damaging parts. One result of the bi-directional jetting action is the part remains stationary and avoids any potential collisions that a circulation tank may subject parts to damage.

By our combining our proprietary AUTOMAT3D™ software program with precisely controlled energy and exclusive eco-friendly detergents, the BASE delivers consistent, hands-free support removal for 3D printed parts. Our solution accelerates your operations with features like intelligent cycle time programming, customizable settings, one-touch repeatability with recipe storage, and pre-programmed preventative maintenance schedules.

We’ve thought of all the ways to make your post-printing more efficient – built-in rinse capability to ensure detergent and residue are eliminated after the supports have been removed, a counter-weighted vertical sliding door, and a viewing window into the LED lighted chamber. Utilizing noise reducing features for a low dBa, the BASE All Process ensures minimal additional noise is added to your production floor environment.

Click to download the PDF Specifications or see more below.

Specifications

Hardware Features

  • Volume Velocity Dispersion (VVD) technology
  • Beckhoff™ digital interface
    • Customizable settings
    • Set and save programs for future runs
  • Stainless steel envelope
  • Textured powder coated enclosure
  • Counter-weighted vertical sliding door
  • Inline strainer
  • Multiple fixtures available
  • Drain
  • Casters for easy installation

Size and Weight

  • Envelope: 40” L x 27 1/2” W x 26” H
  • Machine closed door footprint: 67.75″ L x 37″ W x 85.25″ H
  • Machine open door footprint: 67.75″ L x 83″ W x 97.25″ H
  • Approximate Weight: 2500 lbs. empty; 2850 lbs. full

Electrical

  • Voltage: 208V 3 Phase
  • Amperage: 60A
  • Connector: 560P9W (IP67)

AUTOMAT3D™ Software Features

  • Variable temperature (100-178°F)
  • Programmable cycle time
  • Proprietary Agitation Algorithms

Detergent

  • Polyjet Materials: PG1C Detergent
  • SLA Materials: PG1.1C Detergent
  • FDM Materials: PG2C Detergent
  • Anti Foaming Agent: PG7 (optional)

Safety Features

  • Emergency stop
  • Auto-interrupt
  • Compliant with all OSHA regulations

Consumables

PostProcess Polygone Chemistry for 3D Post Printing

All of our patent-pending engineered solutions have been developed for high-performance and optimized to use our eco-friendly detergents and media. We offer our detergents in pre-mixed 5 gallon and 55 gallon containers. Concentrated versions are also available.

Learn more about Chemistry.
