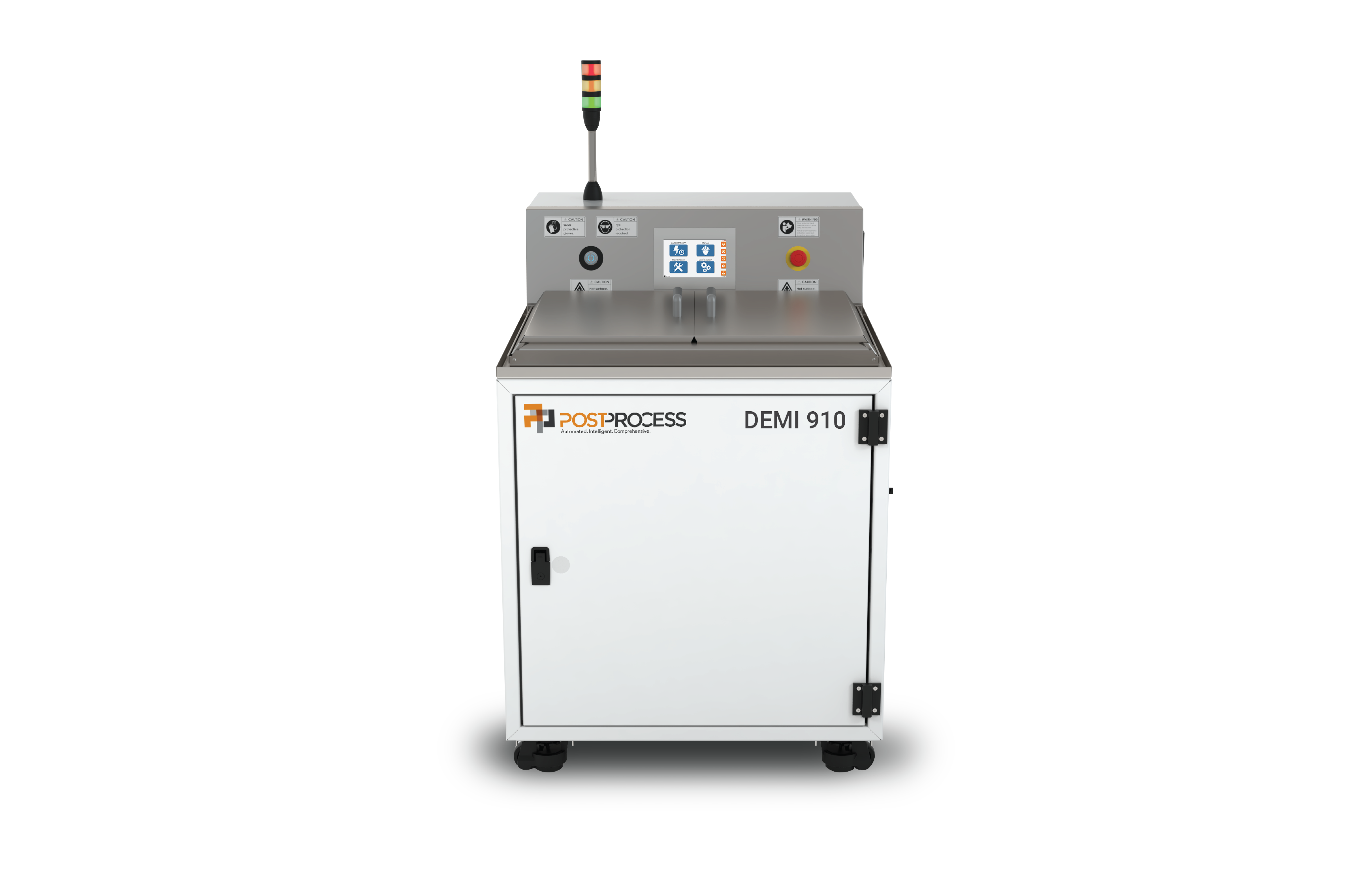

DEMI 910 – Carbon® Resin Removal

The PostProcess® DEMI 910™ automated resin removal submersion system has been developed for the Carbon® ecosystem to dramatically improve efficiencies for the Carbon L1 and M2 3D printers. With a specialized fixture design, the DEMI 910 is capable of automated resin removal for an entire build from a Carbon large-format L1 printer or two build platforms from a Carbon high-resolution M2 printer. The fixture enables Carbon Digital Light Synthesis™ (Carbon DLS™) printed parts to be processed without ever leaving the build platform, improving ergonomics, post-print cycle times, and productivity for users.

Using our patented Submersed Vortex Cavitation (SVC) technology, the DEMI 910 utilizes an agitated flow to remove resin quickly and with uniform results. This solution integrates our proprietary AUTOMAT3D® software programming and Carbon-specific formulated detergents for a process that is safer and more sustainable than most traditional resin removal methods. The detergents are developed to be compatible with the most popular Carbon resins, including EPU 41, EPX 82, MPU 100, RPU 70, RPU 130, DPR 10 and UMA 90 and LOCTITE® 3D IND 405 Clear certified for Carbon printers.

For seamless integration into your additive operation, the DEMI 910 combines a number of uniquely engineered features for ease of use. These features include noise reduction for a low dBa, a powerful magnetically driven pump, advanced filters for extended detergent life, an insulated tank for energy-efficient temperature consistency, and a part fixture particularly designed for use with Carbon 3D printers.

Want to learn more about the DEMI 910? Click to download the PDF Specificationsand watch the latest“How It Works” video!

Specifications

AUTOMAT3D® Software Features

  • Variable temperature
  • Programmable cycle time
  • CONNECT3D® factory automation
  • Proprietary Agitation Algorithms
  • Recipe storage and recall
  • Preventative maintenance features

Hardware Features

  • Stainless steel envelope
  • Hinged envelope lid
  • Magnetically driven pump
  • Multi-configuration fixture
  • Casters for easy installation

Size and Weight

  • Envelope: 18” L x 18” W x 18” H (46 cm x 46 cm x 46 cm)
  • Machine footprint: 34.75” L x 43.5” W x 59.75”H (88 cm x 110 cm x 152 cm)
  • Approximate Weight: 750 lbs (340 kg) empty, 1050 lbs (476 kg) full

Detergent

  • Capacity: 40 Gallons (151 Liters)
  • Carbon resins: PLM-450-SUB for EPU 41, EPX 82, MPU 100, RPU 70, RPU 130, UMA 90 Carbon resins, and LOCTITE® 3D IND405 Clear
    • Implement an IPA-free resin removal workflow with AUX-400-RINSE as the final rinse step. **Note: rinse step is to be performed in separate container, not to be used in PostProcess hardware

Electrical

North America:

  • DEMI 900 UL Model
    • Voltage: 240
    • Amperage: 20A
    • Connector: ABB332P6W
    • Dual agitation, includes ultrasonics

Europe:

  • DEMI 900 CE Model
    • Voltage: 230V
    • Amperage: 20A
    • Connector: ABB332P6W
    • Dual agitation, includes ultrasonics

Safety Features

  • Emergency stop
  • Auto power down
  • CE, UL/CSE certified

Consumables

All of our patent-pending engineered solutions have been developed for high-performance and optimized to use our additive formulated detergents and media. We offer our detergents in pre-mixed 5 gallon and 55 gallon containers. Concentrated versions are also available.

Learn more about Chemistry.
