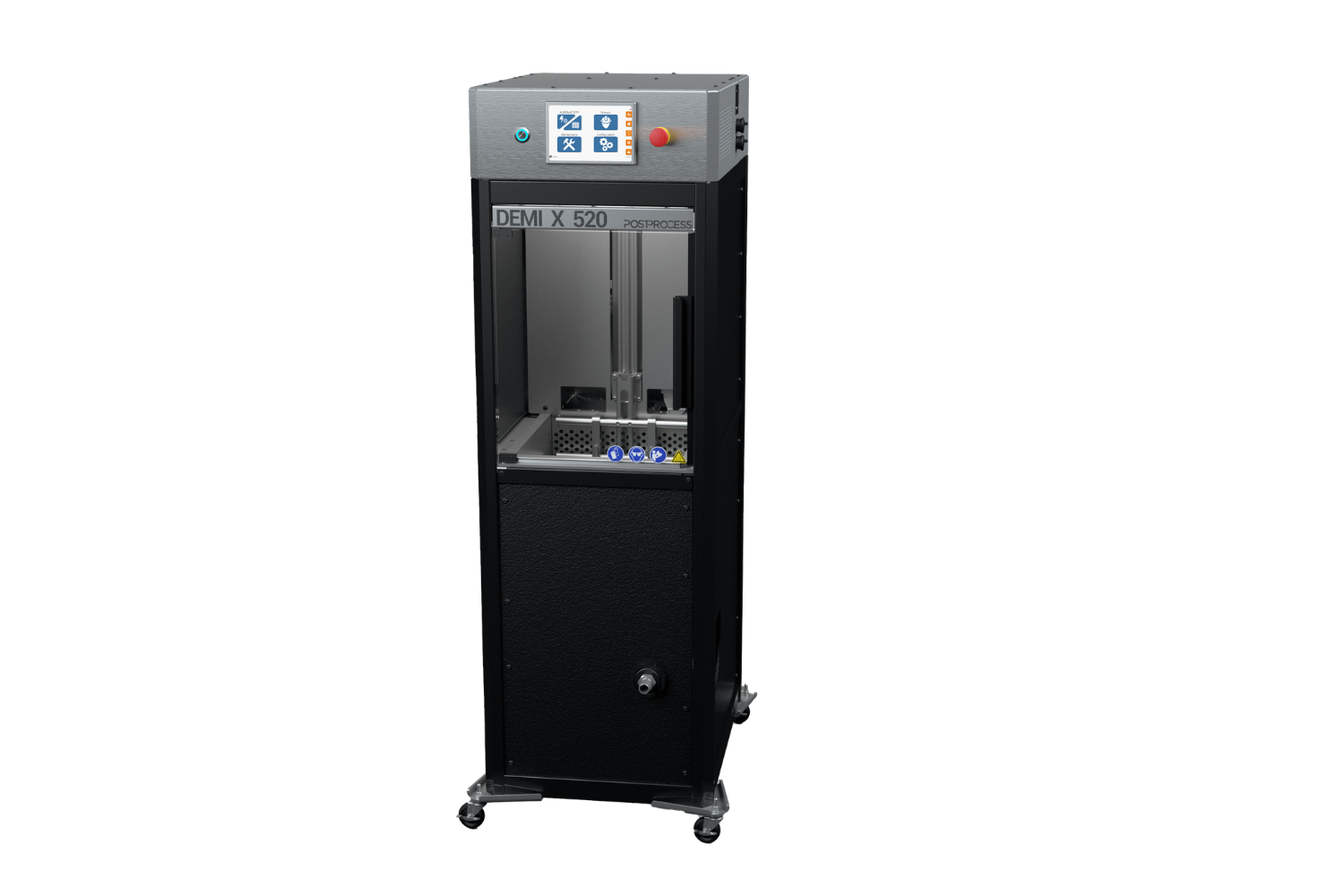

DEMI X 520 for Dental Resin Removal

Elevate your post-processing capabilities with the DEMI X 520 for Dental Resin Removal from PostProcess Technologies. Setting a new standard in automated post-processing for resin, this cutting-edge solution is engineered for precision and efficiency, delivering unparalleled results.

At the heart of this innovation is our AUTOMAT3D® software, designed specifically for dental resin removal. Our software seamlessly guides users through specific processing requirements, allowing you to customize time, temperature, and agitation settings for a smooth, efficient, and error-free operation tailored to your unique needs. Plus, benefit from the convenience of recipe storage for future use.

The DEMI X 520 for Dental Resin Removal employs our patent-pending Axial Flow Technology™️, part of the Submersed Vortex Cavitation (SVC) family of technology. This revolutionary design allows adjustable flow, minimizing the risk of part damage and ensuring safe, optimal outcomes for each component. Experience fast and uniform removal of resin from your dental 3D-printed parts.

Say farewell to manual interventions with the Automatic Lift System, minimizing the need for operator involvement and ensuring consistent, efficient post-processing. Gain real-time visibility into the post-processing journey with LED Chamber Lighting, providing immediate insights into the status of each component.

The biocompatible PLM-403-SUB detergent ensures swift resin removal, completing most cycles in under 10 minutes. AUX-400-RINSE, used as a final rinse step, eliminates the need for IPA in your resin removal workflow. Step into a new era of enhanced safety and streamlined resin removal with the DEMI X 520.

Want to learn more about the DEMI X 520 for Dental Resin Removal?

Watch this video or download the PDF Sales and Specifications Sheet.

Specifications

AUTOMAT3D® Software Features

  • Variable temperature
  • HMI enabled programmable cycle time
  • Proprietary Agitation Algorithms

Hardware Features

  • Axial flow agitation
  • Automated parts lift with adjustable build tray fixture
  • Catch tray
  • Detergent Pump
  • Enclosed safety-interlocked process area
  • LED chamber lighting with RGB workflow status indicator
  • Mounting provisions for ventilation
  • Casters for easy installation
  • Stainless steel process tank
  • Additional fixtures available for purchase

Size and Weight

  • Envelope: 14” L x 14” W x 15” H (36 cm x 36 cm x 38 cm)
  • Machine footprint: 32” L x 25” W x 67”H (82 cm x 64 cm x 170 cm)
  • Approximate Weight: 325 lbs (147 kg) empty, 525 lbs (238 kg) full

Detergent

  • Capacity: 24 Gallons (91 Liters)
  • Resin Materials: PLM-403-SUB and AUX-400-RINSE
    • Implement an IPA-free resin removal workflow with AUX-400-RINSE as the final rinse step. **Note: rinse step is to be performed in separate container, not to be used in PostProcess hardware

Electrical

  • North America
    • Power: 120V, 60Hz, Connector: NEMA 5-15P
    • Axial agitation; includes heater
  • Europe
    • Power: 230V, 50Hz, Connector: CEE 7 / 7
    • Axial agitation; includes heater

Safety Features

  • Emergency stop
  • Safety enclosure with door sensor
  • Redundant over-temperature safety system
  • CE, UL/CSE certified

Consumables

All of our patent-pending engineered solutions have been developed for high-performance and optimized to use our additive formulated detergents and media. We offer our detergents in pre-mixed 5 gallon and 55 gallon containers. Concentrated versions are also available.

Learn more about Chemistry.
