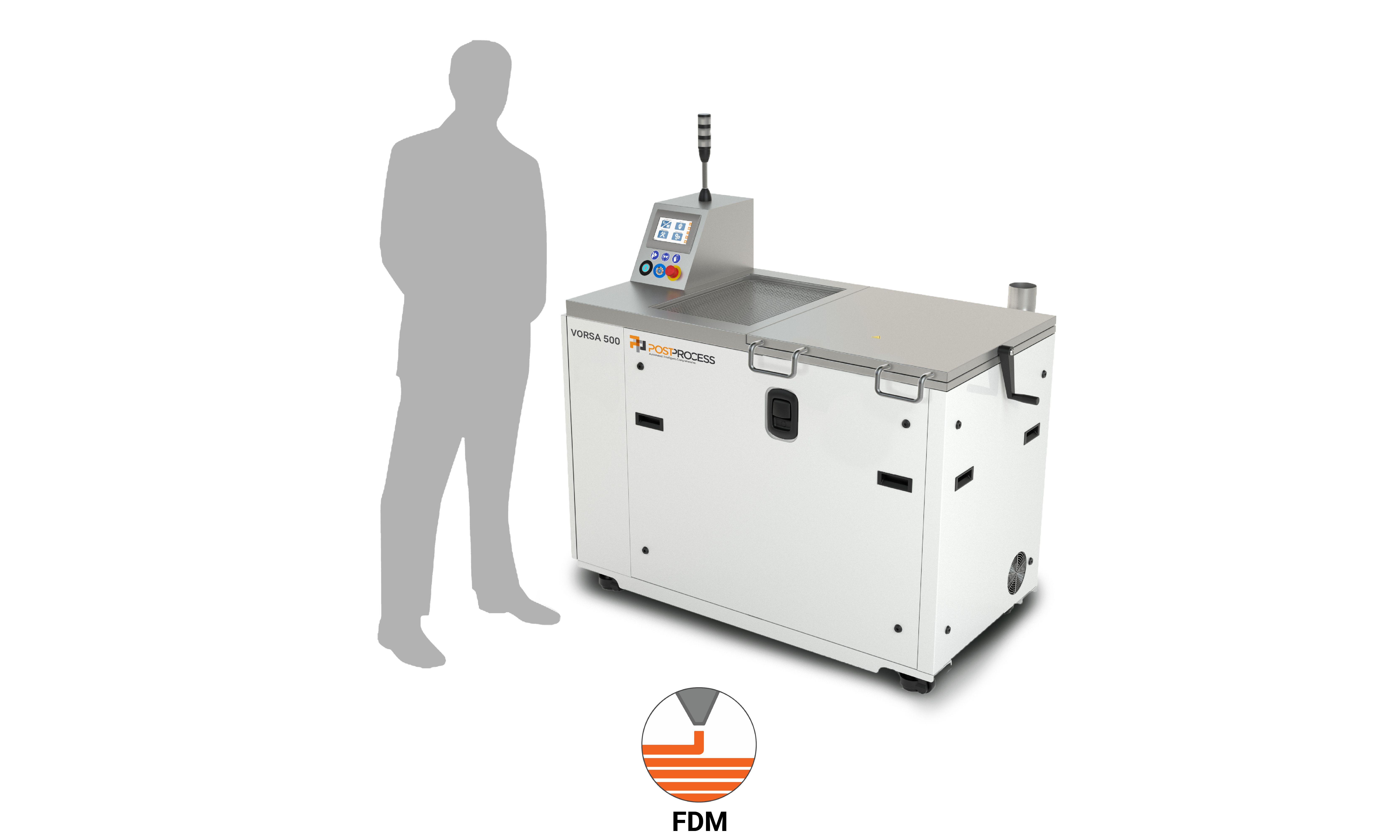

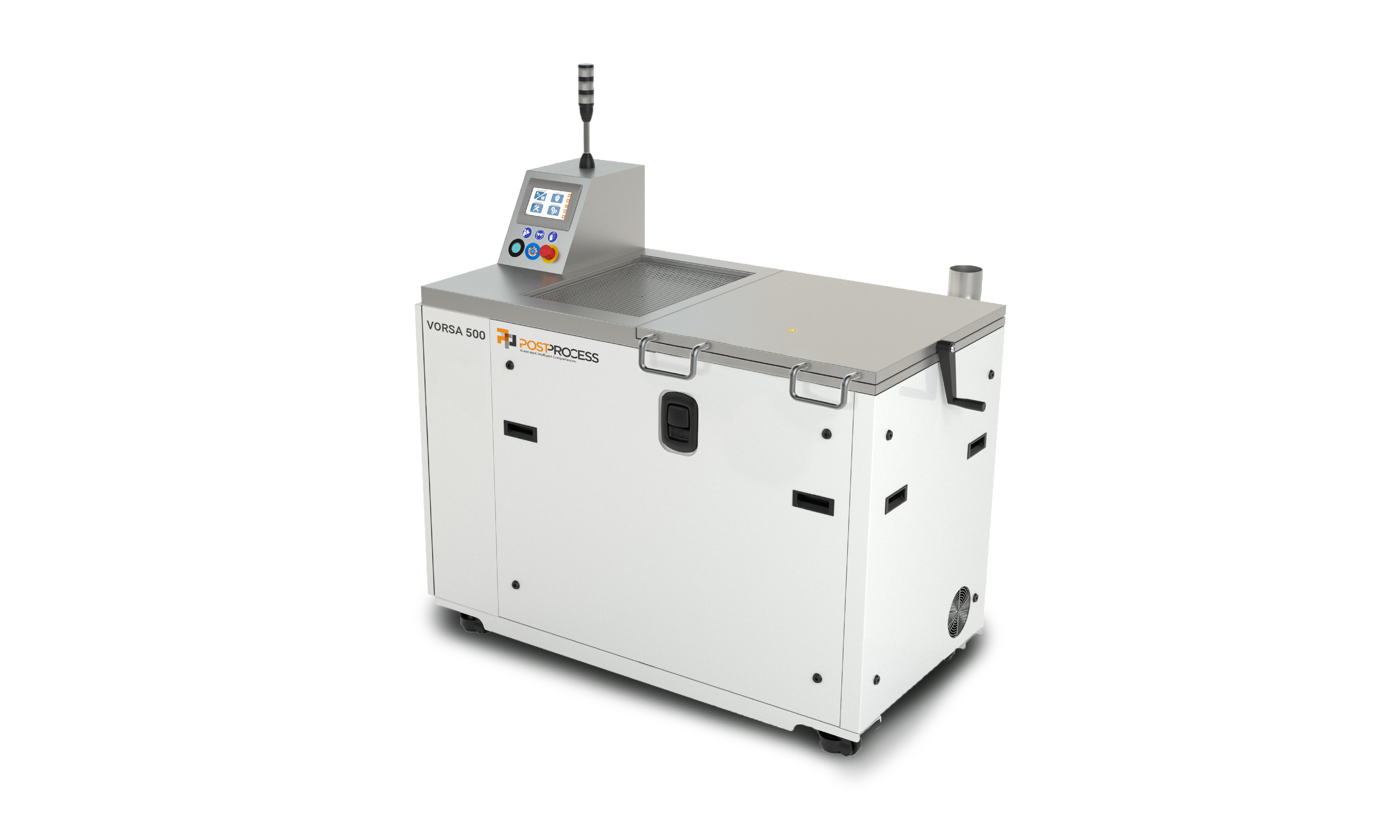

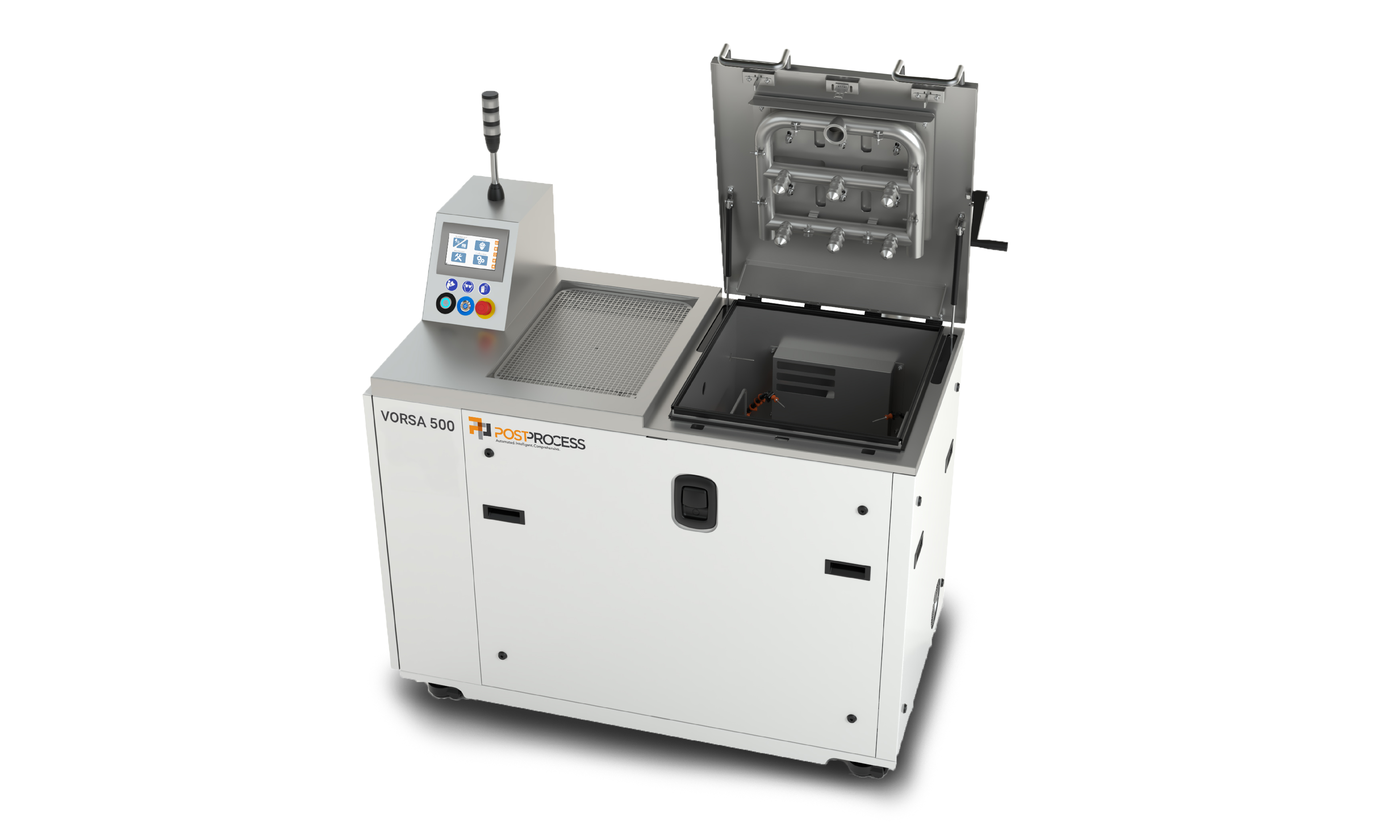

VORSA 500 – Support Removal

The PostProcess® VORSA™ FDM support removal solution offers a large work envelope and delivers uniform, high-quality results for every part, regardless of geometry, with short cycle times to meet your high-volume production needs. The VORSA 500 provides delicate to robust support removal with higher throughput using patented Volumetric Velocity Dispersion (VVD) technology to ensure complete part coverage and support removal. With multidimensional spray technology, the VORSA 500 allows for remarkably quick dry times while maintaining part integrity as parts won’t become saturated with detergent.

No other system in the world combines hardware tailored for 3D post-printing with custom software and additive formulated consumables. With our proprietary Agitation Algorithms ensuring precision-controlled energy and controlling the flow of our additive-formulated detergents, the PostProcess VORSA delivers consistent hands-free support removal from 3D printed FDM parts.

Want to learn more about the VORSA 500? Watch this video or download the PDF Specifications.

Specifications

Hardware Features

  • Volume Velocity Dispersion (VVD) technology
  • Multi-dimensional spray coverage
  • Built-in work station
  • Customizable settings
  • Set and save programs for future runs
  • Stainless steel envelope
  • Textured powder coated enclosure
  • In-line strainer
  • Casters for easy installation

Size and Weight

  • Envelope: 16” L x 16” W x 14.5” H (41 cm x 41 cm x 37 cm)
  • Machine footprint: 67″ L x 35″ W x 67″ H (170 cm x 88 cm x 170 cm)
  • Approximate Weight:
    • 850lbs (386 kg) empty, 1060lbs (481 kg) full

AUTOMAT3D® Software Features

  • Variable temperature
  • Programmable cycle time
  • Proprietary Agitation Algorithms

Detergent

  • FDM Materials: PLM-201-SPRAY / PLM-202-SPRAY

Electrical – US

  • Voltage: 240V, 3 Phase
  • Amperage: 30A
  • Connector: 5ABB430P9W

Electrical – EU

  • Voltage: 400V, 3 Phase
  • Amperage: 15A
  • Connector: 5ABB430P6W

Safety Features

  • Emergency stop
  • Door locks
  • Temperature limits
  • Auto-interrupt
  • Compliant with all OSHA regulations

Consumables

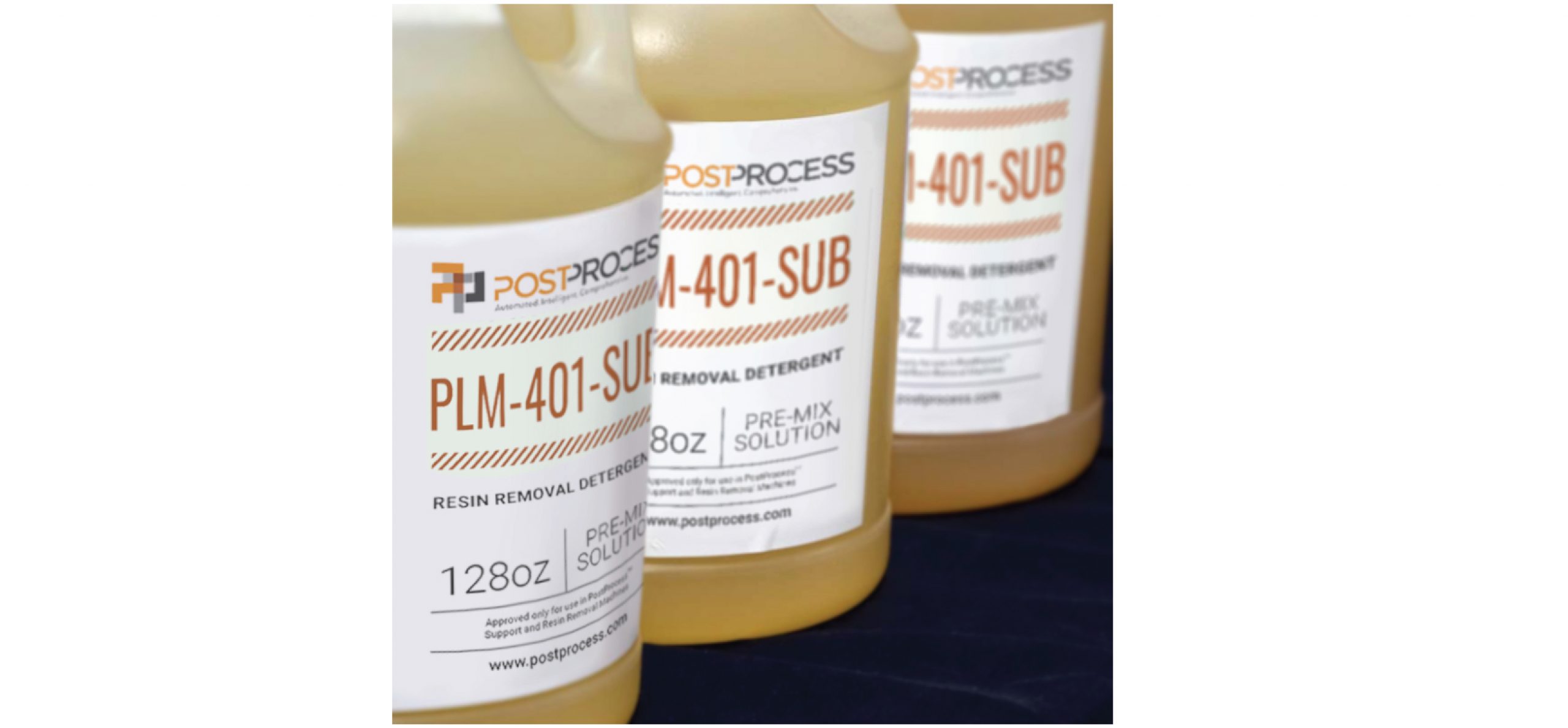

All of our patent-pending engineered solutions have been developed for high-performance and optimized to use our additive formulated detergents and media. We offer our detergents in pre-mixed 5 gallon and 55 gallon containers. Concentrated versions are also available.

Learn more about Chemistry.
