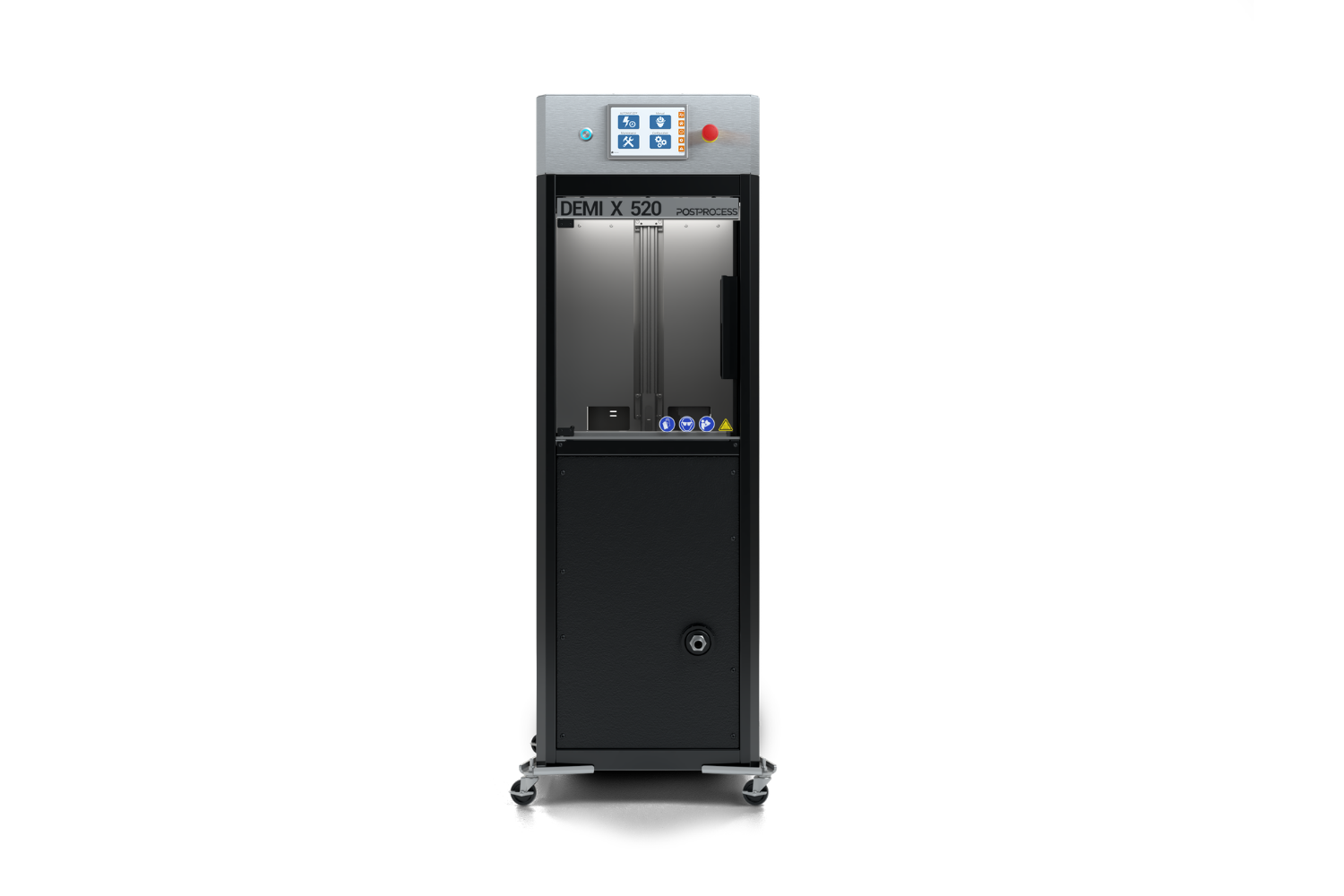

DEMI X 520 for Wax Removal

When precision and efficiency matter most, the PostProcess® DEMI X 520™ for Wax Removal sets a new standard in automated post-processing for removing wax support.

Designed specifically for wax-based additive manufacturing workflows, the DEMI X 520 for Wax Removal combines automated hardware, intelligent AUTOMAT3D® software, and specially formulated chemistry into one complete post-processing solution. The result is a controlled, repeatable process that minimizes manual handling while helping protect fragile 3D printed geometries from damage.

Replace time-consuming, inconsistent manual cleaning with hands-free wax support removal that scales with production.

Achieve reduced manual labor, enhanced operator safety, and consistent, repeatable results.

Advantages of PostProcess DEMI X 520 for Wax Removal

Hands-free operation
Minimize manual operation with automated wax removal process, cleaning a full batch of parts in just over an hour.
Optimal sustainability
Improve sustainability efforts with reduced waste generation compared to IPA using PLM-601-SUB detergent.
Enhanced safety
Wax removal chemistry offers an exceedingly safer flashpoint than IPA and automated lift protects from over-exposure.
Increased throughput
DEMI X 520 can seamlessly process large batch sizes, enabling high volume production to deliver unparalleled consistency and minimized breakage.
Repeatable results
Axial Flow Technology™ allows for adjustable flow, reducing the risk of part damage to guarantee consistent results, even with delicate wax parts.
Full software integration
AUTOMAT3D® digital platform allows for full customization, recipe storage and automation with one-touch operation.

View More Videos

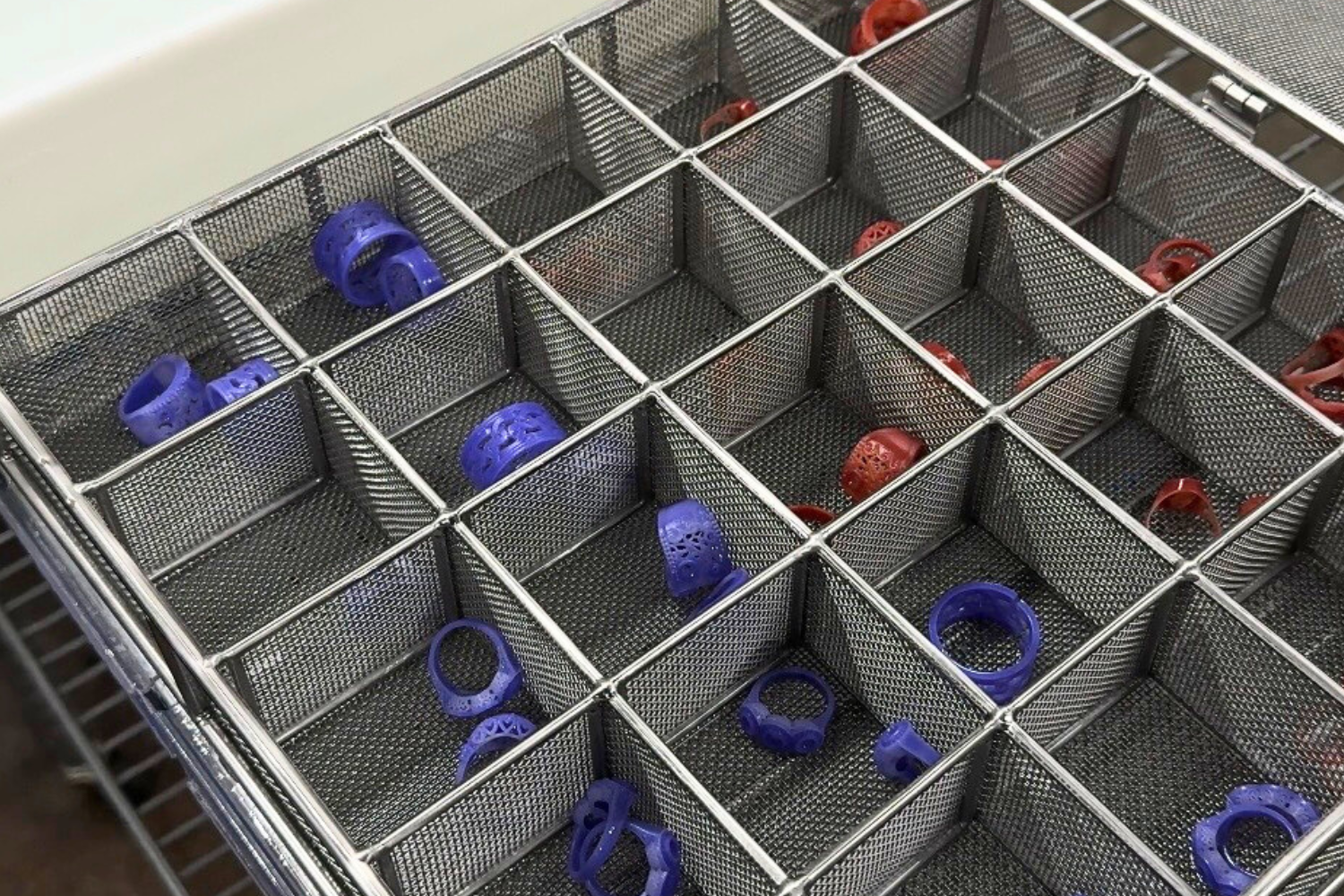

Customer Story: Stuller Jewelry

Stuller replaced their manual, IPA-based wax support removal process with the PostProcess DEMI X 520 for Wax Removal, integrating a more consistent and automated workflow into daily production in less than one year while improving operator safety and reducing breakage for delicate parts.

Read Now >>

Product Specifications

Electrical Requirements:

US | 120 Volt, 60Hz, 1-Phase
EU | 230 Volt, 50 Hz, 1-Phase

Envelope Capacity:

14″ L x 14″ W x 15″ H (36 x 36 x 38 cm)

Lift Capacity:

10 lbs (4.5 kg)

Consumable Used:

PLM-601-SUB

Consumable Capacity:

24 gallons (91 liters)

Machine Dimensions (WxDxH):

Doors Closed: 32” L x 25” W x 67” H (82 x 64 x 170 cm)
Doors Open: 54.6” L x 28.9” W x 67.8” H (139 x 73 x 172 cm)

System Weight:

Empty: Approx. 325 lbs (147 kg)
Full: Approx. 525 lbs (238 kg)

System Warranty:

12 months on-site service and support, as per PostProcess Technologies conditions of sale.

Environmental Requirements:

Temperature range: 60-80°F (15-27°C)
Relative humidity: 0-80%

Software:

AUTOMAT3D, Windows 10

Regulatory Conformity:

CE, SGS

Features & Options:

Customizable settings with recipe storage capability / High longevity – will remove around 33 lbs/15kgs of support before saturation / Flashpoint over 104°F / 96°C

Safety Features:

Emergency stop / Safety enclosure with door sensor

Connectivity:

USB Port: USB 3.1
Ethernet: Fully compliant with IEE 802.3, IEEE 802.3u, IEEE 802.3ab

Material Compatibility:

Works with most wax support materials

Printer Compatibility:

Compatible with most wax printers, including 3D Systems & Flashforge
