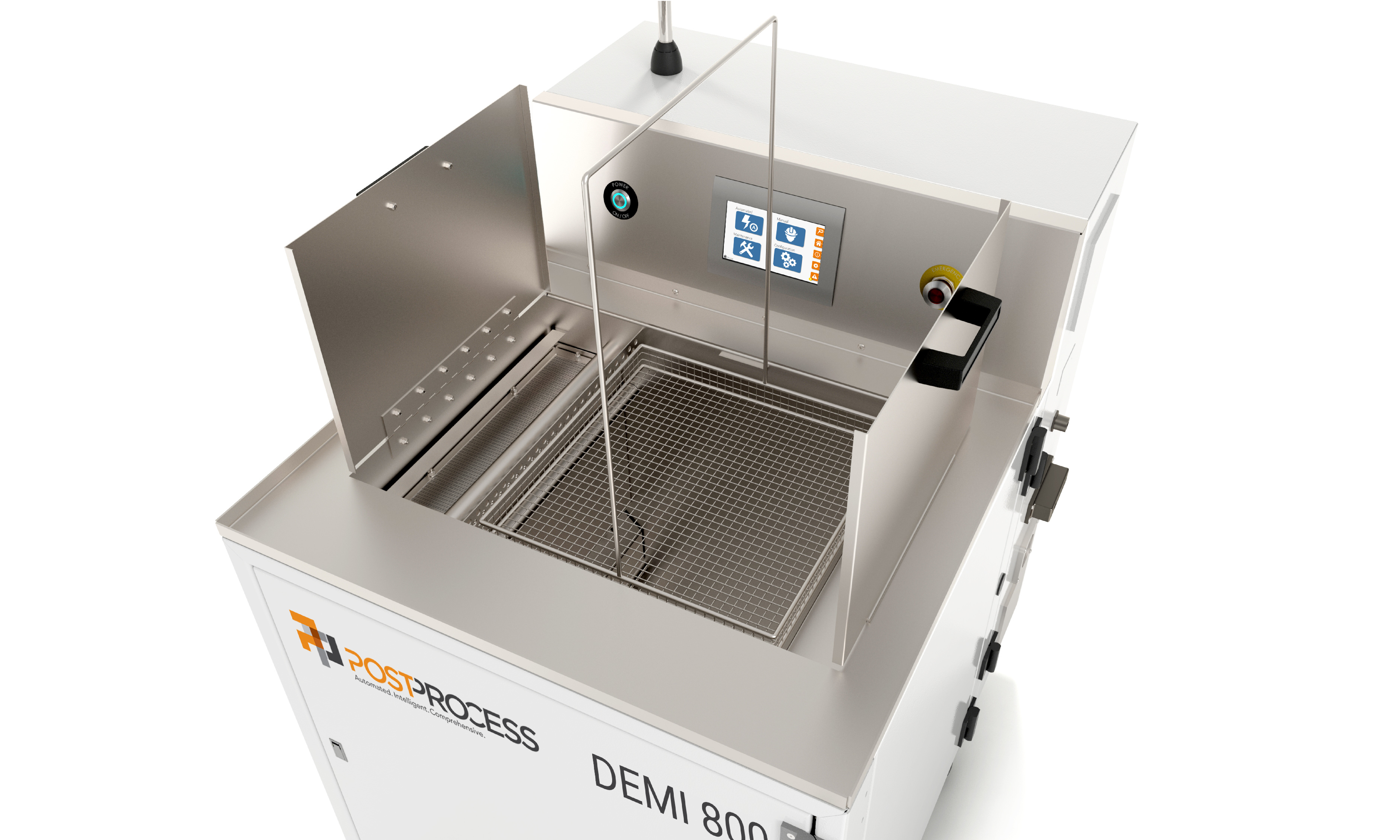

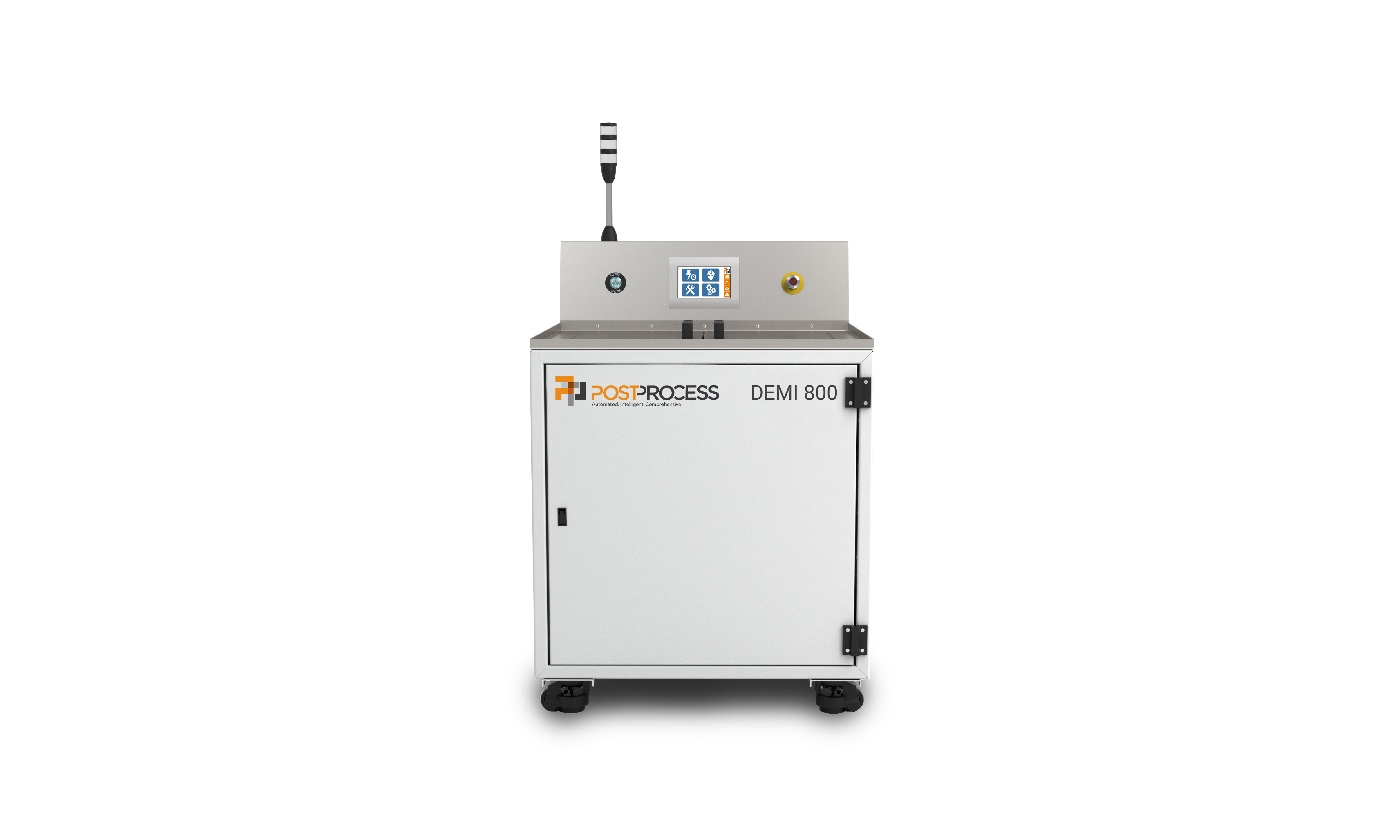

DEMI 800 Series – Support & Resin Removal

When throughput is essential, the PostProcess® DEMI 800™ Series automated submersion systems are engineered to meet the demands of volume production while ensuring consistency of every part. The varying specifications of our models ensure a range of features are available for your automated post-printing needs. All models incorporate our proprietary software program and additive formulated detergents for a complete additive manufacturing post-print solution.

The DEMI 800 Series uses our patented Submersed Vortex Cavitation (SVC) technology and removes PolyJet supports or excess resin. PostProcess’ SVC technology utilizes agitated flow to effectively remove supports with a ‘sink-float’ process to rotate parts throughout the chamber. This variable motion, combined with optimal energy delivery and detergent filtration, results in fast and uniform removal. With the motion of fluids within the machine controlled by our Agitation Algorithms, sensor data adjusts in real-time so that parts are not damaged and removal of supports and resin is consistent.

The DEMI 800 Series integrates a number of design features for ease of use and integration into your 3D printing operations, like noise reduction for a low dBa, a powerful magnetically driven pump, and advanced filters for extended detergent life. A fully insulated tank to keep the temperature consistent for energy efficiency, a basket to remove parts from the system and harness at the top of the unit, and ergonomically friendly tank orientation are just a few of the uniquely engineered features. The PostProcess DEMI 800 Series is available in a variety of models based on your unique application needs.

Want to learn more about the DEMI 800 Series? Download the PDF Specifications and watch the latest “How It Works” video!

Specifications

AUTOMAT3D® Software Features

  • Variable temperature
  • Programmable cycle time
  • Proprietary Agitation Algorithms
  • Recipe storage and recall
  • Precision control of process parameters
  • Preventative maintenance features

Hardware Features

  • Digital interface
  • Stainless steel envelope
  • Textured powder-coated enclosure
  • Powerful magnetically driven pump
  • Casters for easy installation
  • Ergonomically friendly tank orientation & hinged envelope lid
  • Ability to lock out and drain filter housing for easy maintenance
  • Multi-configuration fixture – hands-off part retrieval, hang rack at top of envelope

Size and Weight

  • Envelope: 18” L x 18” W x 18” H (46 cm x 46 cm x 46 cm)
  • Machine footprint: 34.75” L x 43.5” W x 59.75”H (88 cm x 110 cm x 152 cm)
  • Approximate Weight: 700 lbs (318 kg) empty, 1000 lbs (454 kg) full

Detergent

  • Capacity: 40 Gallons (151 Liters)
  • Polyjet Materials: PLM-101-SUB
  • FDM Materials: PLM-201-SUB
  • Wax Materials – PLM-601-SUB

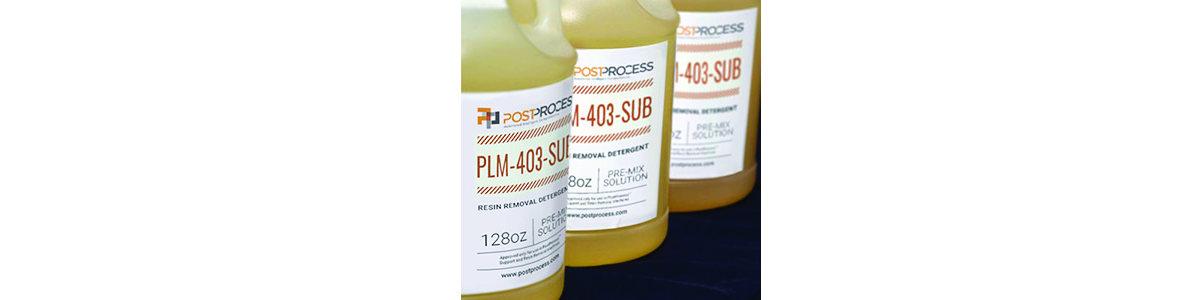

  • SLA, DLP and CLIP Materials: PLM-403-SUB and AUX-400-RINSE
    • Implement an IPA-free resin removal workflow with AUX-400-RINSE as the final rinse step. **Note: rinse step is to be performed in separate container, not to be used in PostProcess hardware

Electrical

North America:

  • DEMI 800 Model (SLA/DLP/CLIP only)
    • Voltage: 120
    • Amperage: 20A
    • Connector: NEMA L5-20P

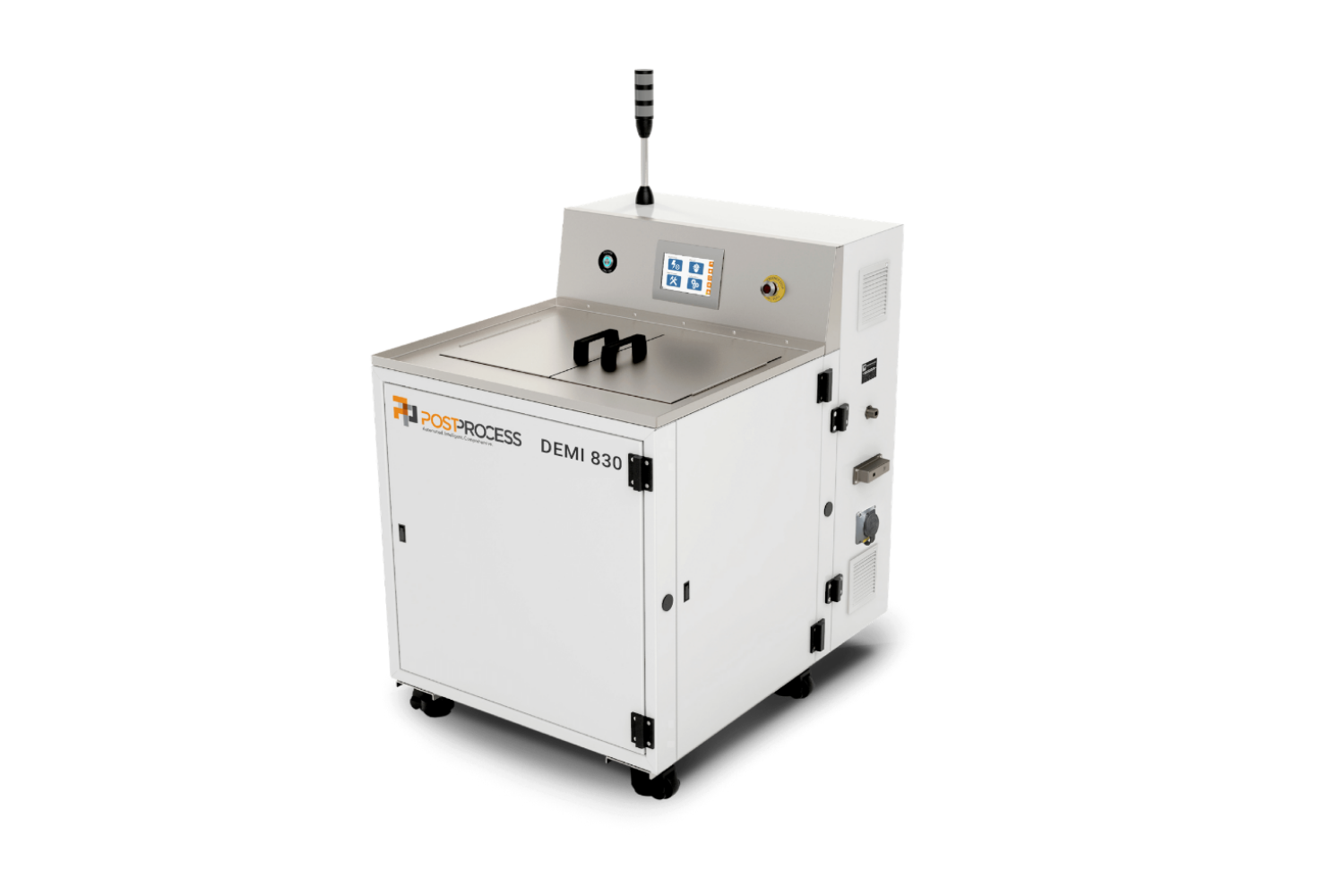

  • DEMI 830-120V Model (PolyJet/FDM/SLA/DLP/CLIP)
    • Voltage: 120
    • Amperage: 20A
    • Connector: NEMA L5-20P
    • Dual agitation, includes heater & ultrasonics
  • DEMI 830-240V Model (PolyJet/FDM/SLA/DLP/CLIP)
    • Voltage: 240V
    • Amperage: 20A
    • Connector: ABB332P6W
    • Dual agitation, includes heater & ultrasonics

Europe:

  • DEMI 830-230V Model (PolyJet/FDM/SLA/DLP/CLIP)
    • Voltage: 230V
    • Amperage: 20A
    • Connector: ABB332P6W
    • Dual agitation, includes heater & ultrasonics

Safety Features

  • Emergency stop
  • Auto power down
  • CE, UL/CSE certified

Consumables

All of our patent-pending engineered solutions have been developed for high-performance and optimized to use our additive formulated detergents and media. We offer our detergents in pre-mixed 5 gallon and 55 gallon containers. Concentrated versions are also available.

Learn more about Chemistry.
